Items
|

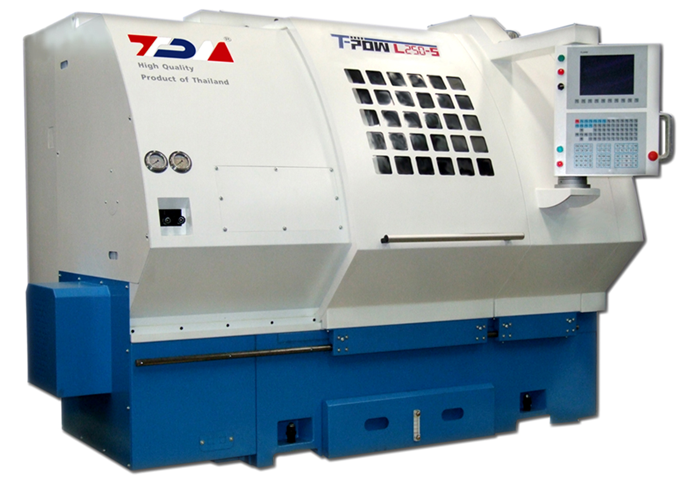

T-Pow L250-S
|
Units
|
| Capacity |
|
|
| No.of axis |
STD:2 axis / OPT : 3 axis ( C axis )
|
|
| Swing over bad |
? 600 (23.62")
|
mm(inch)
|
| Max.Turning dia |
? 300 (11.81")
|
mm(inch)
|
| Working length |
455 (17.91")
|
mm(inch)
|
| Spindle |
|
|
| Spindle nose bar internal taper |
ASA A2-6 MT No.6
|
|
| Spindle bore |
STD : ?61 (2.4")
|
mm(inch)
|
| |
OPT : ?77 (3.03")
|
|
| Bar capacity |
STD : ?51 (2.0")
|
mm(inch)
|
| |
OPT : ?65 (2.56")
|
|
| Range of spingle speed |
25~4200
|
rpm
|
| Living tools speed |
POT : 25~4200
|
|
| No.of spindle speed |
Infinitely variable
|
|
| Chuck |
|
|
| Hydraulic chuck |
? 210 (8")
|
mm(inch)
|
| Turret |
|
|
| Tool station (Random) |
STD : Hyd LS-240-12
|
|
| |
OPT : Servo LS-240-12
|
|
| O.D.tooling |
25 x 25
|
mm
|
| I.D.tooling |
? 40 (1.57")
|
mm(inch)
|
| Cross slide (X-axis)&Carriage (Z-aixs) |
|
| X-axis travel |
185 (7.28")
|
mm(inch)
|
| Y-axis travel |
465 (18.3")
|
mm(inch)
|
| Rapid traverse speed (X-axis) |
20 (787)
|
m/min(ipm)
|
| Rapid traverse speed (Z-axis) |
20 (787)
|
m/min(ipm)
|
| Cutting feed rate (Both-axis) |
0.0001-500
|
mm/rve.
|
| Dia.of ball screw (X-axis) |
? 32 (1.26") P10
|
mm(inch)
|
| Dia.of ball screw (Z-axis) |
? 36 (1.42") P11
|
mm(inch)
|
| Motor |
|
|
| Main spindle (continuous) |
P22i 750/6000rpm AC11kW (15HP)
|
kW
|
| Main spindle (30 min.rating) |
P22i 750/6000rpm AC15kW (20HP)
|
kW
|
| X-axis |
2 , 9.54 N-m
|
kW
|
| Z-axis |
2 , 9.54 N-m
|
kW
|
| Hydraulic oil pump |
1.5 (2 HP)
|
kW
|
| Coolant pump |
750 (1 HP)
|
w
|
| Programmable Tailstock |
|
|
| Quill dia. |
? 75 (2.95")
|
mm(inch)
|
| Quill stroke |
80 (3.15")
|
mm(inch)
|
| Taper of center |
MT No.4
|
|
| Tailstock travel |
430 (16.93")
|
mm(inch)
|
| Tank Capacity |
|
|
| Hydraulic Tank |
60
|
Liter
|
| Coolant Tank |
80
|
Liter
|
| Measurement |
|
|
| Floor space (LxW) |
3550 x 2000 (140" x 78.7")
|
mm(inch)
|
| Hight |
2000 (78.7)
|
mm(inch)
|
| G.Weight |
4550 / 5250
|
kgs
|
