Specifications |
| Brand |

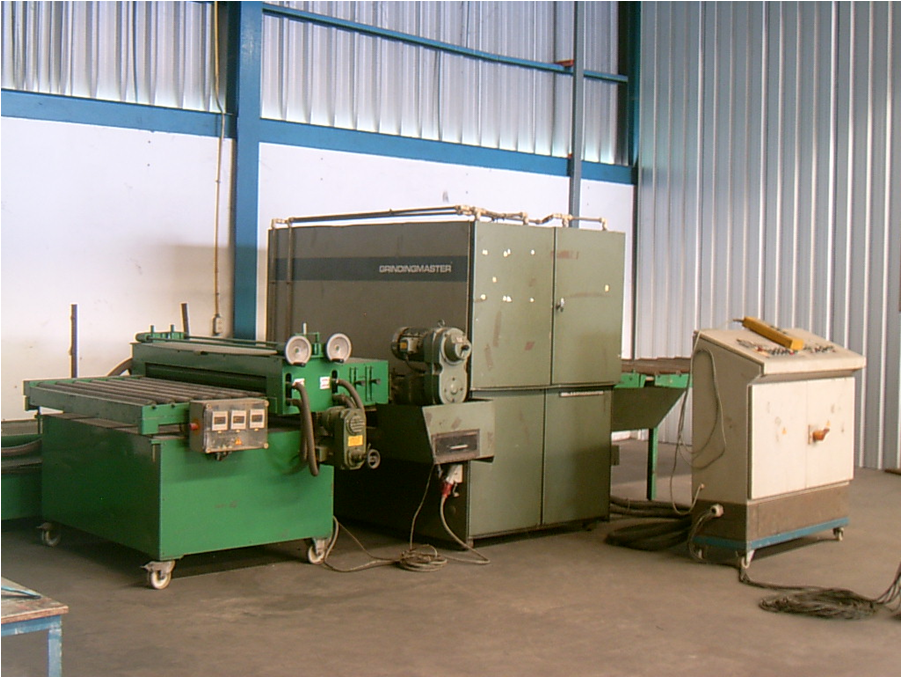

GRINDING MASTER 4000 |
| Model |
MLSB/B2-1300 |
| Serial No. |
TP 2019-01 |
| Controller |
|
| Table Size |
1220x2440 |
GRINDING |
ALUMINIUM |
(mm) |
SURFACE |
FINISH |
| ROUGH |
| THICKNESS |
1.5-10 |
| STAINLESS |
(mm) |
SURFACE |
FINISH |
| ROUGH |
| THICKNESS |
1.5-10 |
| SUPERLEEN |
(mm) |
SURFACE |
FINISH |
| ROUGH |
| THICKNESS |
2-10 |
| TAPLON |
(mm) |
SURFACE |
FINISH |
| ROUGH |
| THICKNESS |
2-10 |
| Motor Conveyor |
(mm.) |
Siephan-Werke Hameln Varibelt
380-420y 144 u/mim A 9.8 |
| Motor Slide |
|
Cnord 0.55KW 3PH 220/380-420 V
2.5/1.45-1.47 A |
| Motor Coollant |
|
Brnkmann-pumen 160 I/min 1.1kw
50hz 2700min 220-2502 4.3A |
| Motor Magnet |
|
Motor 40 W 180 V 0.3A
NI/N2 1000/1.7 U/MIN |
| Motor Paper |
|
Motor 15S3 25%W 220-255 4 A
680/12.5 380/440 YV 0.4/0.22A |
| Motor Wheel |
|
3 PH 15.5/18.5 KW GOS 0.89/0.93
50 HZ 380V 29.5/34A 1470/2930
MIN/RPM 3PH 15KW 1455 MIN/RPM
380/990 V 30/17A 50 HZ 0.81KW
1.1/0.63A 1360/1632 MIN/ 50/60 HZ
GOS 0.73/0.72 |
| Coolant Pump Motor |
|
|
| Lubricant Pump Motor |
|
|
| Floor Space Of Machine |
(mm.) |
8000x4800x3000 |
| Machine Net Weight |
(Kg.) |
|
