| Items |

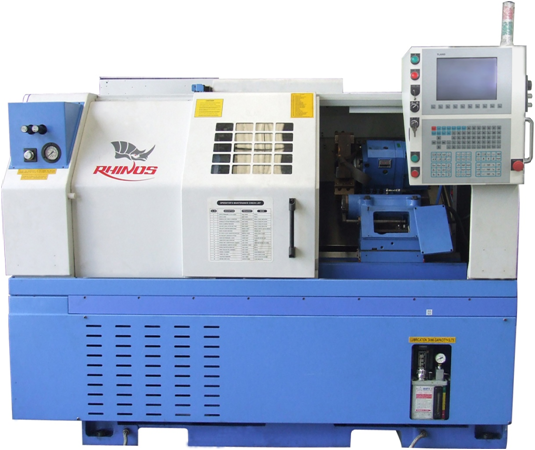

Rhinos 1450 |
Units |
| Capacity |
|
|
| Distance between center |
400 |
mm |
| Maximum turning dia. |
290 |
mm |
| Maximum turning length |
400 |
mm |
| Main Spindle |
|
|
| Spindle nose |
A2-6 |
mm |
| Spindle bore |
63 |
mm |
| Bar capacity |
57 |
mm |
| Chuck size |
200 |
mm |
| Front bearing bore |
100 |
mm |
| Spindle Drive |
|
|
| Spindle motor rated power |
7.5/11 |
kW |
| (continuous rating/15min.rating) |
| Speed range (inf. Variable) |
50-3500 |
rpm |
| Full power range |
875-2625 |
rpm |
| Axes Slides |
|
|
| X-axis Stroke |
150 |
mm |
| Z-axis Stroke |
400 |
mm |
| Feed rate (inf. Variable) |
0-10,000 |
mm/min |
| Rapid traverse speed (X-axis) |
20 |
m/min |
| Rapid traverse speed (Z-axis) |
20 |
m/min |
| Tailstock |
|
|
| Quill diameter |
80 |
mm |
| Quill stroke |
|
|
| Taper in quill |
MT4 |
|
| Thrust (adjustable) Max. |
500 |
Kgf. |
| Tailstock base travel |
235 |
mm |
| Turret |
|
|
| No. of stations |
8 |
|
| Maximum boring |
100 |
mm |
| Tool cross section |
25 x 25 |
mm |
| Weight (approx.) |
3800 |
kg. |
| CNC System |
TLAND |
|
