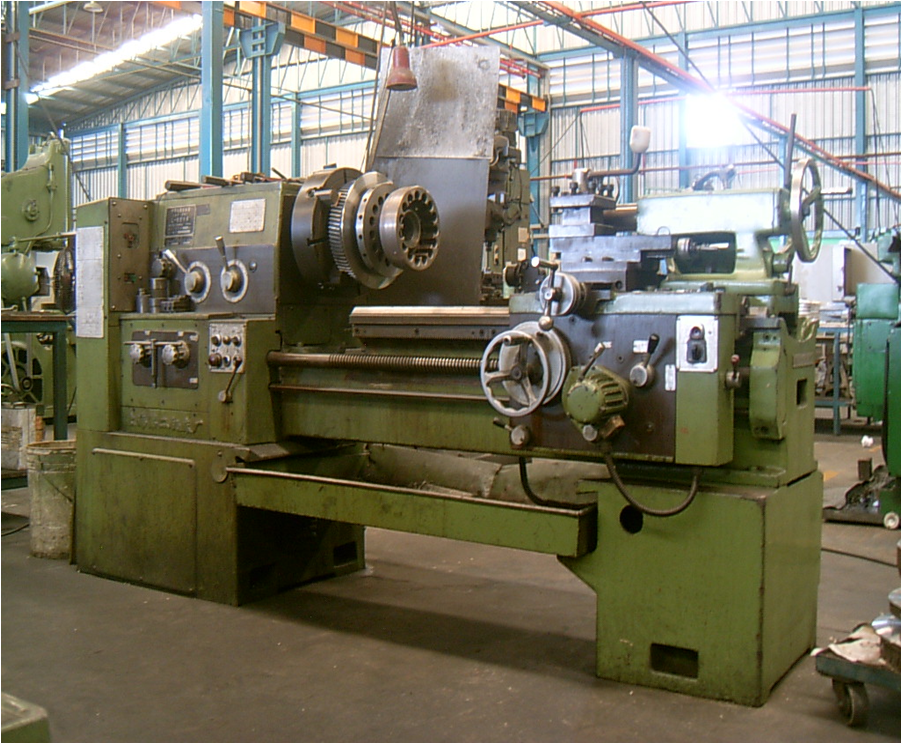

| LATHA MANUAL L-5 88255 |
|
Specifications |
| Brand |
LATHA MANUAL |
| Model |
L-5 |
| Serial No. |
88255 |
| Controller |
|
| Swing Over Bed |
(mm) |
650 |
| Swing Over Cross Slide |
(mm) |
500 |
| Distance Between Center |
(mm) |
1000 |
| Max. Turning Dia |
(mm) |
400 |
| Spindle Servo Motor |
(kw/Nm) |
6KVA 3PH 380V 50HZ 12A |
| Spindle Speed |
(RPM) |
1250 |
| Spindle Nose |
|
|
| Dia Hole Through Spindle |
(mm) |
f50 |
| Hole Through Draw Bar |
(mm) |
|
| Front Bearing I.D. Of Spindle |
(mm) |
|
| Tail Stock Taper |
|
NO.5 |
| Tail Stock Quill Dia X Travel |
Dia x Len |
f75x170 |
| Travel For X Axis |
(mm) |
160 |
| Travel For Z Axis |
(mm) |
700 |
| Rapid Speed For X & Z |
|
|
| Type Of Turret |
(kgs) |
|
| Tool size |
(mm) |
25x25 4tool |
| Hy. Pump Motor |
(mm) |
|
| Coolant Pump Motor |
|
|
| Lubricant Pump Motor |
|
|
| Floor Space Of Machine |
(mm) |
1400 |
| Machine Net Weight |
(Kg) |
|
|
|
