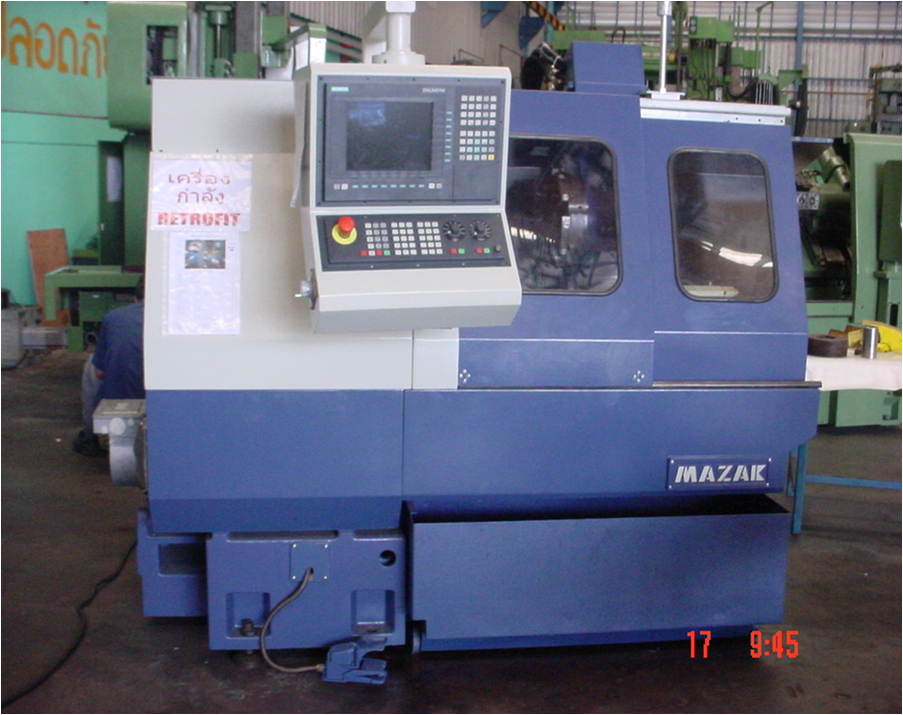

| MAZAK Turn 15-L 40717 |
|
Specifications |
| Brand |
MAZAK |
| Model |
Turn 15 L |
| Serial No. |
40717 |
| Controller |
SIEMENS 810D |
| Swing Over Bed |
(mm) |
350 |
| Swing Over Cross Slide |
(mm) |
300 |
| Distance Between Center |
(mm) |
|
| Max. Turning Dia |
(mm) |
240 |
| AC Spindle Servo Motor |
(kw/Nm) |
Siemens 380 V 24A 11 Kw 1500 - 8000 RPM |
| Spindle Speed |
(RPM) |
2500 |
| Spindle Nose |
|
A2-5 |
| Dia Hole Through Spindle |
(mm) |
|
| Hole Through Draw Bar |
(mm) |
|
| Front Bearing I.D. Of Spindle |
(mm) |
|
| Tail Stock Taper |
|
|
| Tail Stock Quill Dia X Travel |
Dia x Len |
|
| Travel For X Axis |
(mm) |
120 |
| Travel For Z Axis |
(mm) |
350 |
| Rapid Speed For X & Z |
|
X=9m/min Z=9m/min |
| Type Of Turret |
(kgs) |
|
| Tool size |
(mm) |
25x25mm (12TOOL) |
| Hy. Pump Motor |
(mm) |
220/60 Hz 5.8 A 1710 RPM |
| Coolant Pump Motor |
|
|
| Lubricant Pump Motor |
|
220/Interval 3 min Discharge 2.5 CC |
| Floor Space Of Machine |
(mm) |
2300x1600x2000 |
| Machine Net Weight |
(Kg) |
3500 kg. |
|
|
