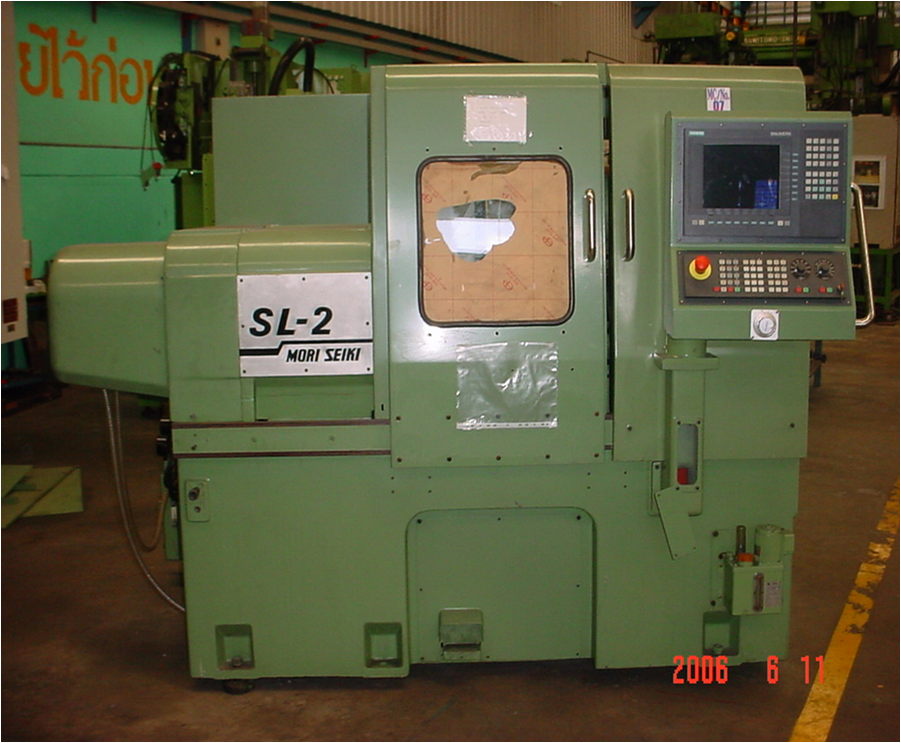

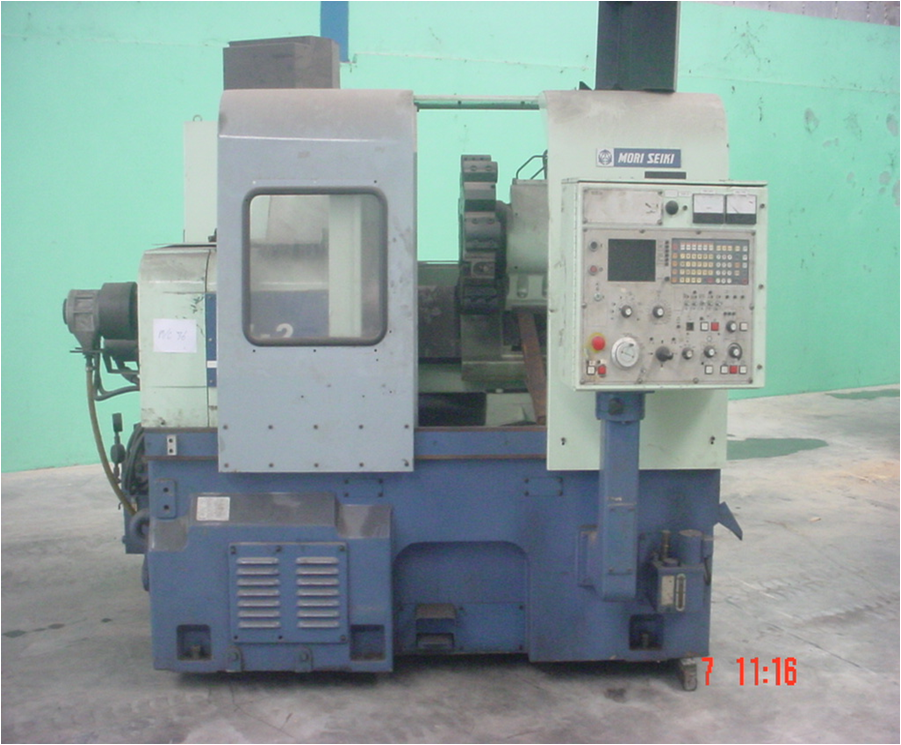

| MORI SEIKI SL-2 |
|
Specifications |
| Brand |
MORI SEIKI |
| Model |
SL-2 |
| Serial No. |
|
| Controller |
SIEMENS 810 D |
| Swing Over Bed |
(mm) |
400 |
| Swing Over Cross Slide |
(mm) |
300 |
| Distance Between Center |
(mm) |
380 |
| Max. Turning Dia |
(mm) |
300 |
| AC Spindle Servo Motor |
(kw/Nm) |
AC INDUCTION MOTOR |
| Spindle Speed |
(RPM) |
2500 |
| Spindle Nose |
|
A2-5 |
| Dia Hole Through Spindle |
(mm) |
38 |
| Hole Through Draw Bar |
(mm) |
38 |
| Front Bearing I.D. Of Spindle |
(mm) |
|
| Tail Stock Taper |
|
|
| Tail Stock Quill Dia X Travel |
Dia x Len |
|
| Travel For X Axis |
(mm) |
200 |
| Travel For Z Axis |
(mm) |
350 |
| Rapid Speed For X & Z |
|
X=9m/min Z=18.9m/min |
| Type Of Turret |
(kgs) |
|
| Tool size |
(mm) |
25x25 (8Tool) |
| Hy. Pump Motor |
(mm) |
|
| Coolant Pump Motor |
|
|
| Lubricant Pump Motor |
|
10w 200v 50/60 Hz 1250/1500-1600 r/min |
| Floor Space Of Machine |
(mm) |
2400x1600x1800 |
| Machine Net Weight |
(Kg) |
4000 |
|
|
