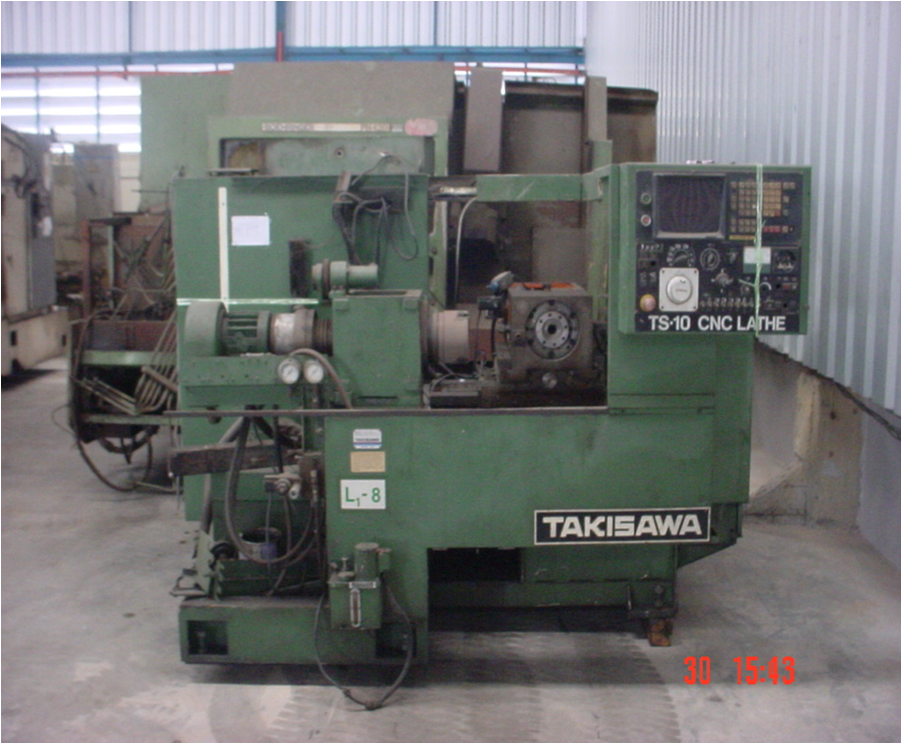

| TAKISAWA TS-10 |
|
Specifications |
| Brand |
TAKISAWA |
| Model |
TS-10 |
| Serial No. |
THEU 2071 |
| Controller |
|
| Swing Over Bed |
(mm) |
200x2 |
| Swing Over Cross Slide |
(mm) |
200x2 |
| Distance Between Center |
(mm) |
|
| Max. Turning Dia |
(mm) |
150 |
| Spindle Servo Motor |
(kw/Nm) |
Fanuc AC MOTOR |
| Motor X-Axis |
(kw/Nm) |
Fanuc ,2.9NM ,96V ,7.2A,2000 RPM |
| Motor Z-Axis |
(kw/Nm) |
Fanuc ,2.9NM ,96V ,7.2A,2000 RPM |
| Spindle Speed |
(RPM) |
|
| Spindle Nose |
|
|
| Dia Hole Through Spindle |
(mm) |
|
| Hole Through Draw Bar |
(mm) |
|
| Front Bearing I.D. Of Spindle |
(mm) |
|
| Tail Stock Taper |
|
|
| Tail Stock Quill Dia X Travel |
Dia x Len |
|
| Travel For X Axis |
(mm) |
300 |
| Travel For Z Axis |
(mm) |
300 |
| Rapid Speed For X & Z |
|
|
| Type Of Turret |
(kgs) |
|
| Tool size |
(mm) |
|
| Hy. Pump Motor |
(mm) |
DAIKIN 1.5KW 1420/1700/1710RPM |
| Coolant Pump Motor |
|
FUJI 200u/min 60HZ 220V 1.9A |
| Lubricant Pump Motor |
|
SHOVA 220V 01.5A 1600RPM |
| Floor Space Of Machine |
(mm) |
|
| Machine Net Weight |
(Kg) |
|
|
|
