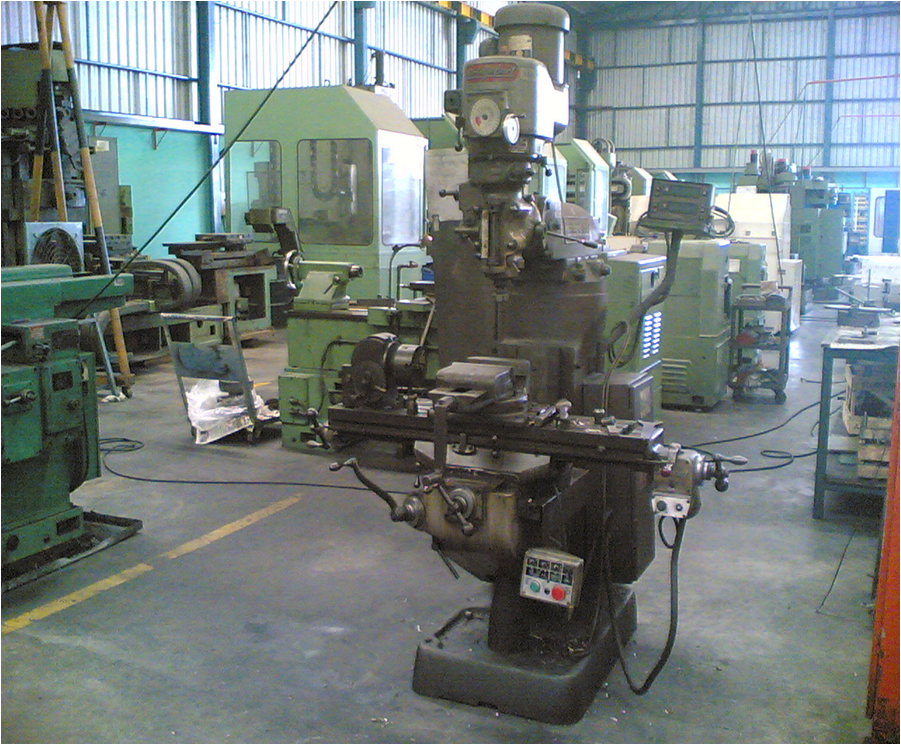

BRIDGEPORT
48870588 |
|
Specifications |
| Brand |
BRIDGEPORT |
| Model |
|
| Serial No. |
48870588 |
| Controller |
|
Table |
Table Overall Size |
(mm) |
1070x230 |
| Max. Loading |
(Kgs) |
500 |
| T-Slots |
|
(mm) |
|
Travels |
X-Axis |
(mm) |
860 |
| Y-Axis |
(mm) |
320 |
| Z-Axis |
(mm) |
360 |
Spindle |
Taper |
|
(BT/ISO) |
ER-32 |
| Speeds |
|
(RPM) |
1735 |
| Motor-Peak/30min./Cont |
(Kw/Nm) |
|
| Cutting Feed rate |
(m/min) |
|
| Rapid Feed Rate X/Y/Z |
(m/min) |
|
| Axis Motor X/Y/Z |
(Kgs) |
|
Automatic Tool Change |
Type Of Tool |
(BT/ISO) |
ER32 CORLET-CLAMPING NUT |
| Max. Tool Length |
(mm.) |
90 |
| Tool Diameter |
(mm.) |
32 |
|
Max. Tool Weight |
(Kgs) |
0.6 KG |
Ball Screw On 3 Axis |
Diameter x Pitch |
(mm.) |
|
| Precision Grade |
(mm.) |
|
| Coolant Pump Motor |
|
|
| Lubricant Pump Motor |
|
|
| Floor Space Of Machine |
(mm.) |
1500x1600x2200 |
| Machine Net Weight |
(Kg.) |
|
|
|
